界面控件Telerik UI for WPF – 如何为WPF应用制作一个虚拟键盘？(2/2)

主要功能

自定义

你觉得组件的默认外观太标准了以使用控件的 VirtualKeayboardTemplateSelector 属性自定义键盘按钮，让键盘与众不同！

<ResourceDictionary><ResourceDictionary.MergedDictionaries><ResourceDictionary Source="/Telerik.Windows.Themes.Crystal;component/Themes/System.Windows.xaml"/><ResourceDictionary Source="/Telerik.Windows.Themes.Crystal;component/Themes/Telerik.Windows.Controls.xaml"/><ResourceDictionary Source="/Telerik.Windows.Themes.Crystal;component/Themes/Telerik.Windows.Controls.Input.xaml"/><ResourceDictionary Source="/Telerik.Windows.Themes.Crystal;component/Themes/Telerik.Windows.Controls.Navigation.xaml"/></ResourceDictionary.MergedDictionaries><Style x_Key="KeyButtonStyle" TargetType="telerik:RadButton" BasedOn="{StaticResource RadButtonStyle}"><Setter Property="Padding" Value="4"/><Setter Property="FontSize" Value="11"/><Setter Property="Focusable" Value="False"/><Setter Property="Foreground" Value="#4b6159"/><Setter Property="CornerRadius" Value="20"/><Setter Property="MinWidth" Value="0"/></Style><DataTemplate x_Key="RegularKeyTemplate"><telerik:RadButton Command="{Binding KeyCommand}" AutomationProperties.AutomationId="{Binding DisplayText}" Style="{StaticResource KeyButtonStyle}" VerticalContentAlignment="Stretch" HorizontalContentAlignment="Stretch"><Grid><Grid.RowDefinitions><RowDefinition/><RowDefinition/></Grid.RowDefinitions><Grid.ColumnDefinitions><ColumnDefinition/><ColumnDefinition/></Grid.ColumnDefinitions><TextBlock Text="{Binding ShiftText}" Margin="3 0 0 0" Grid.Row="0" Grid.Column="0" Visibility="{Binding ShowSecondaryText, Converter={StaticResource BooleanToVisibilityConverter}}"/><TextBlock Text="{Binding DisplayText}" Grid.RowSpan="2" Grid.ColumnSpan="2" HorizontalAlignment="Center" VerticalAlignment="Center"/></Grid></telerik:RadButton></DataTemplate><DataTemplate x_Key="SpecialKeyTemplate"><telerik:RadButton Content="{Binding DisplayText}" Command="{Binding KeyCommand}" AutomationProperties.AutomationId="{Binding DisplayText}" Style="{StaticResource KeyButtonStyle}" Background="#ffdac1" MinWidth="40" /></DataTemplate><DataTemplate x_Key="NumpadKeyTemplate"><telerik:RadButton Content="{Binding DisplayText}" Command="{Binding KeyCommand}" AutomationProperties.AutomationId="{Binding DisplayText}" Style="{StaticResource KeyButtonStyle}"/></DataTemplate><DataTemplate x_Key="LockKeyTemplate"><telerik:RadToggleButton Foreground="#4b6159" Content="{Binding DisplayText}" Command="{Binding KeyCommand}" IsChecked="{Binding IsChecked}" Background="#b5ead7"AutomationProperties.AutomationId="{Binding DisplayText}" Focusable="False" FontSize="{Binding FontSize, RelativeSource={RelativeSource AncestorType={x:Type telerikNavigation:RadVirtualKeyboard}}}"Padding="0" helpers:ThemeHelper.CornerRadius="30" helpers:ThemeHelper.FocusVisualMargin="0"/></DataTemplate><telerikNavigation:VirtualKeyboardTemplateSelector x_Key="VirtualKeyboardTemplateSelector"RegularTemplate="{StaticResource RegularKeyTemplate}"SpecialTemplate="{StaticResource SpecialKeyTemplate}"NumpadTemplate="{StaticResource NumpadKeyTemplate}"LockTemplate="{StaticResource LockKeyTemplate}" /></ResourceDictionary>

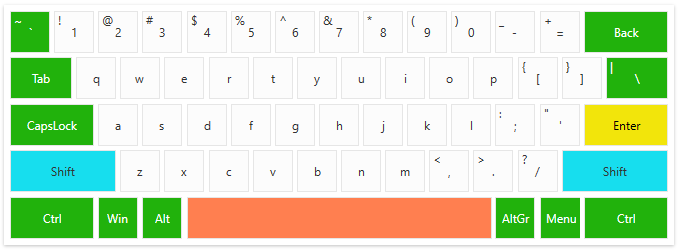

让我们来看看：

这还不是全部，通过扩展控件的视图模型和可在 VirtualKeyboardTemplateSelector 的 DataTemplates 中使用的其他属性，可以将控件的自定义提升到一个新的水平。您可以将需要实现自定义键的工厂类使用扩展视图模型，现在将演示如何为按钮的背景和前景添加属性。

1. 我们需要创建一个自定义键视图模型来包含背景和前景信息：

public class CustomLockKeyViewModel : LockKeyViewModel{public CustomLockKeyViewModel(int virtualKey, double keyWidth, double keyHeight, string displayText): base(virtualKey, keyWidth, keyHeight, displayText){}public Brush Background { get; set; }public Brush Foreground { get; set; }}public class CustomModifierKeyViewModel : ModifierKeyViewModel{public CustomModifierKeyViewModel(int virtualKey, double keyWidth, double keyHeight, string displayText): base(virtualKey, keyWidth, keyHeight, displayText){}public Brush Background { get; set; }public Brush Foreground { get; set; }}public class CustomRegularKeyViewModel : RegularKeyViewModel{public CustomRegularKeyViewModel(int virtualKey, double keyWidth, double keyHeight, bool showSecondaryText, string displayText = null): base(virtualKey, keyWidth, keyHeight, showSecondaryText, displayText){}public Brush Background { get; set; }public Brush Foreground { get; set; }}public class CustomSpecialKeyViewModel : SpecialKeyViewModel{public CustomSpecialKeyViewModel(int virtualKey, double keyWidth, double keyHeight, string displayText): base(virtualKey, keyWidth, keyHeight, displayText){}public Brush Background { get; set; }public Brush Foreground { get; set; }}

2. 下一步是创建一个密钥因素：

public class CustomKeyFactory : DefaultKeyFactory{private static readonly List<int> specialColorKeyCodes = new List<int>(){8, 20, /*CapsLock*/ 9, /*tilde*/ 160,/*Backspace*/ 226, 162, /*Ctrl*/91, /*Win*/ 164, /*Alt*/ 165, /*AltGr*/ 93, /*Menu*/163, /*Ctrl*/ 45, /*Backspace*/ 226, 192};public Brush DefaultBrush { get; set; }public Brush EnterBrush { get; set; }public Brush SpaceBrush { get; set; }public Brush SpecialBrush { get; set; }public Brush ShiftBrush { get; set; }public Brush DefaultForeground { get; set; }public CustomKeyFactory(){DefaultBrush = new SolidColorBrush((Color)ColorConverter.ConvertFromString("#FCFCFC"));EnterBrush = new SolidColorBrush((Color)ColorConverter.ConvertFromString("#F2E50B"));SpaceBrush = new SolidColorBrush((Color)ColorConverter.ConvertFromString("#FF7F50"));SpecialBrush = new SolidColorBrush((Color)ColorConverter.ConvertFromString("#21B20C"));ShiftBrush = new SolidColorBrush((Color)ColorConverter.ConvertFromString("#17DEEE"));DefaultForeground = new SolidColorBrush((Color)ColorConverter.ConvertFromString("#333333"));}public override BaseKeyViewModel CreateKey(int virtualKey, KeyType keyType = KeyType.Normal, string displayText = null, double width = 1, double height = 1, int alternateVirtualKey = -1, string alternateText = null, bool showSecondaryText = false){var keyModel = CreateCustomKey(virtualKey, keyType, displayText, width, height, alternateVirtualKey, alternateText, showSecondaryText);if (virtualKey == 13) // Enter{SetCustomViewModelProperty(keyModel, "Background", EnterBrush);SetCustomViewModelProperty(keyModel, "Foreground", Brushes.Black);}if (virtualKey == 13) // Enter{SetCustomViewModelProperty(keyModel, "Background", EnterBrush);SetCustomViewModelProperty(keyModel, "Foreground", Brushes.Black);}else if (virtualKey == 32) // Space{SetCustomViewModelProperty(keyModel, "Background", SpaceBrush);}else if (virtualKey == 160 || virtualKey == 161) // Shift{SetCustomViewModelProperty(keyModel, "Background", ShiftBrush);}else if (specialColorKeyCodes.Contains(virtualKey)){SetCustomViewModelProperty(keyModel, "Background", SpecialBrush);SetCustomViewModelProperty(keyModel, "Foreground", Brushes.White);}return keyModel;}private BaseKeyViewModel CreateCustomKey(int virtualKey, KeyType keyType, string displayText, double width, double height, int alternateVirtualKey, string alternateText, bool showSecondaryText){switch (keyType){case KeyType.Normal:return new CustomRegularKeyViewModel(virtualKey, width, height, showSecondaryText, displayText) { Background = DefaultBrush, Foreground = DefaultForeground };case KeyType.Special:return new CustomSpecialKeyViewModel(virtualKey, width, height, displayText) { Background = DefaultBrush, Foreground = DefaultForeground };case KeyType.Modifier:return new CustomLockKeyViewModel(virtualKey, width, height, displayText) { Background = DefaultBrush, Foreground = DefaultForeground };case KeyType.Lock:return new CustomLockKeyViewModel(virtualKey, width, height, displayText) { Background = DefaultBrush, Foreground = DefaultForeground };case KeyType.Numpad:return new NumpadKeyViewModel(virtualKey, width, height, displayText, alternateVirtualKey, alternateText);default:throw new ArgumentException("Unknown key type");}}private static void SetCustomViewModelProperty(BaseKeyViewModel viewModel, string propertyName, object value){var propertyInfo = viewModel.GetType().GetProperty(propertyName);if (propertyInfo != null){propertyInfo.SetValue(viewModel, value);}}}

3. 现在我们将定义键模板选择器：

<telerik:VirtualKeyboardTemplateSelector x_Key="KeyTemplateSelector"><telerik:VirtualKeyboardTemplateSelector.RegularTemplate><DataTemplate><telerik:RadButton Command="{Binding KeyCommand}" VerticalContentAlignment="Stretch" HorizontalContentAlignment="Stretch" Padding="0" Background="{Binding Background}" Foreground="{Binding Foreground}"><Grid><Grid.RowDefinitions><RowDefinition/><RowDefinition/></Grid.RowDefinitions><Grid.ColumnDefinitions><ColumnDefinition/><ColumnDefinition/></Grid.ColumnDefinitions><TextBlock Text="{Binding ShiftText}" Margin="3 0 0 0" Visibility="{Binding ShowSecondaryText, Converter={StaticResource BooleanToVisibilityConverter}}"/><TextBlock Text="{Binding DisplayText}" Grid.RowSpan="2" Grid.ColumnSpan="2" HorizontalAlignment="Center" VerticalAlignment="Center"/></Grid></telerik:RadButton></DataTemplate></telerik:VirtualKeyboardTemplateSelector.RegularTemplate><telerik:VirtualKeyboardTemplateSelector.SpecialTemplate><DataTemplate><telerik:RadButton Content="{Binding DisplayText}" Command="{Binding KeyCommand}" Padding="0" Background="{Binding Background}" Foreground="{Binding Foreground}"/></DataTemplate></telerik:VirtualKeyboardTemplateSelector.SpecialTemplate><telerik:VirtualKeyboardTemplateSelector.LockTemplate><DataTemplate><telerik:RadToggleButton Content="{Binding DisplayText}" Command="{Binding KeyCommand}" IsChecked="{Binding IsChecked}" Background="{Binding Background}" Foreground="{Binding Foreground}"/></DataTemplate></telerik:VirtualKeyboardTemplateSelector.LockTemplate></telerik:VirtualKeyboardTemplateSelector>

4. 最后一步是设置自定义密钥因素和模板选择器：

<telerik:RadVirtualKeyboard VirtualKeyboardTemplateSelector="{StaticResource KeyTemplateSelector}" DefaultKeyboardLayout="Compact" Width="675" Height="240"><telerik:RadVirtualKeyboard.KeyFactory><local:CustomKeyFactory /></telerik:RadVirtualKeyboard.KeyFactory></telerik:RadVirtualKeyboard>
