UI组件Kendo UI for jQuery数据管理使用教程：TaskBoard – 列

列设置

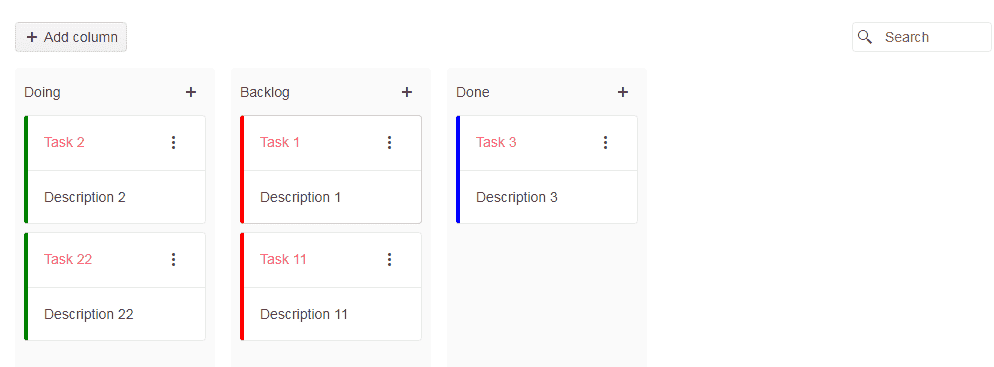

以下示例演示如何通过设置宽度来自定义列并仅显示三个默认列按钮当中的一个。

<div id="taskBoard"></div><script>$("#taskBoard").kendoTaskBoard({dataOrderField: "order",dataSource: [{ id: 1, order: 1, title: "Task 1", description: "Description 1", status: "backlog", category: "red" },{ id: 2, order: 2, title: "Task 11", description: "Description 11", status: "backlog", category: "red" },{ id: 3, order: 3, title: "Task 2", description: "Description 2", status: "doing", category: "green" },{ id: 4, order: 4, title: "Task 22", description: "Description 22", status: "doing", category: "green" },{ id: 5, order: 5, title: "Task 3", description: "Description 3", status: "done", category: "blue" }],columns: [{ text: "Doing", status: "doing" },{ text: "Backlog", status: "backlog" },{ text: "Done", status: "done" }],columnSettings: {width: 200,buttons: ["addCard"]}});</script>

列命令

可用的列命令是：

• AddColumnCommand
• EditColumnCommand
• DeleteColumnCommand
• SaveColumnCommand
• CancelEditColumnCommand

除了默认按钮之外，您还可以选择将自定义按钮添加到任务板列。

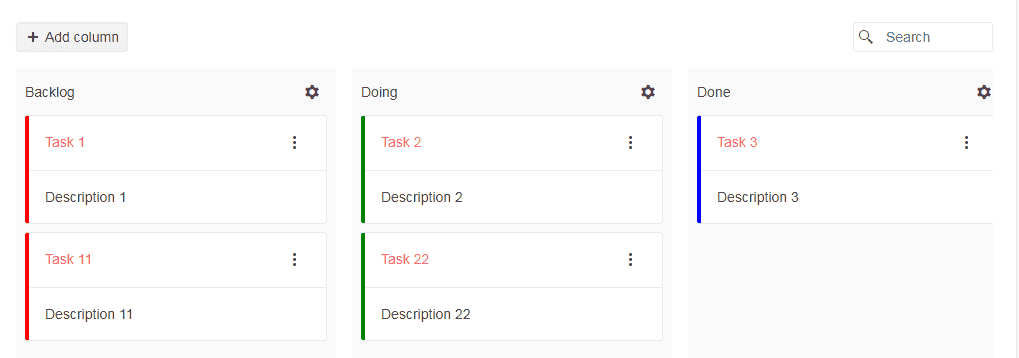

以下示例演示如何使用 columnSettings 配置添加自定义按钮，创建自定义命令，在单击自定义按钮时触发。

<div id="taskBoard"></div><script>$("#taskBoard").kendoTaskBoard({dataOrderField: "order",dataSource: [{ id: 1, order: 1, title: "Task 1", description: "Description 1", status: "backlog", category: "red" },{ id: 2, order: 2, title: "Task 11", description: "Description 11", status: "backlog", category: "red" },{ id: 3, order: 3, title: "Task 2", description: "Description 2", status: "doing", category: "green" },{ id: 4, order: 4, title: "Task 22", description: "Description 22", status: "doing", category: "green" },{ id: 5, order: 5, title: "Task 3", description: "Description 3", status: "done", category: "blue" }],columns: [{ text: "Backlog", status: "backlog" },{ text: "Doing", status: "doing" },{ text: "Done", status: "done" }],columnSettings: {buttons: [{ name: "CustomButton", text: "My Custom Tool", icon: "gear", command: "MyCustomCommand", options: "myvalue" }]}});kendo.ui.taskboard.commands["MyCustomCommand"] = kendo.ui.taskboard.Command.extend({exec: function () {var taskboard = this.taskboard;var options = this.options;var column = options.column;var columnElm = options.columnElement;columnElm.css("border", "solid red 3px");alert(kendo.format("Custom command executed for column with status {0} and value {1}", column.get("status"), options.value));}});</script>
