说明
本教程介绍如何在Ubuntu系统下安装和使用cura切片软件
测试环境:Ubuntu 16.04 + cura 14.07
操作步骤
下载cura安装包：下载链接
下载完成后，解压
$ unzip cura_14.07-debian_amd64.zip
Archive: cura_14.07-debian_amd64.zip
inflating: cura_14.07-debian_amd64.deb
安装cura
$ sudo dpkg -i cura_14.07-debian_amd64.deb
Selecting previously unselected package cura.
(Reading database … 252764 files and directories currently installed.)
Preparing to unpack cura_14.07-debian_amd64.deb …
Unpacking cura (14.01) …
dpkg: dependency problems prevent configuration of cura:
cura depends on python-wxgtk2.8; however:
Package python-wxgtk2.8 is not installed.
dpkg: error processing package cura (–install):
dependency problems – leaving unconfigured
Processing triggers for bamfdaemon (0.5.3~bzr0+16.04.20180209-0ubuntu1) …
Rebuilding /usr/share/applications/bamf-2.index…
Processing triggers for desktop-file-utils (0.22-1ubuntu5.2) …
Processing triggers for gnome-menus (3.13.3-6ubuntu3.1) …
Processing triggers for mime-support (3.59ubuntu1) …
Errors were encountered while processing:
cura
ubuntu
这里可能提示缺少python-wxgtk2.8，但是这个已经是旧版本，现在的源已经不含这个版本
下面添加新的ppa源
$ sudo add-apt-repository ppa:codeblocks-devs/release
$ sudo apt-get update
修复依赖
$ sudo apt-get install -f
[sudo] password for ubuntu:
Reading package lists… Done
Building dependency tree
Reading state information… Done
Correcting dependencies… Done
The following packages were automatically installed and are no longer required:
libllvm4.0 snapd-login-service
Use ‘sudo apt autoremove’ to remove them.
The following additional packages will be installed:
libgstreamer-plugins-base0.10-0 libgstreamer0.10-0 libwxbase2.8-0 libwxgtk-media2.8-0 libwxgtk2.8-0 python-wxgtk2.8
Suggested packages:
libvisual-0.4-plugins gstreamer0.10-tools gstreamer0.10-plugins-base wx2.8-doc wx2.8-examples editra
The following NEW packages will be installed:
libgstreamer-plugins-base0.10-0 libgstreamer0.10-0 libwxbase2.8-0 libwxgtk-media2.8-0 libwxgtk2.8-0 python-wxgtk2.8
0 upgraded, 6 newly installed, 0 to remove and 518 not upgraded.
1 not fully installed or removed.
Need to get 4,632 kB/8,551 kB of archives.
After this operation, 40.9 MB of additional disk space will be used.
Do you want to continueY/n] y
Get:1 http://cn.archive.ubuntu.com/ubuntu xenial-updates/universe amd64 libgstreamer-plugins-base0.10-0 amd64 0.10.36-2ubuntu0.2 [514 kB]
Get:2 http://ppa.launchpad.net/codeblocks-devs/release/ubuntu xenial/main amd64 python-wxgtk2.8 amd64 2.8.12.1+dfsg2-ppa1~ubuntu16.04.1 [4,118 kB]
Fetched 2,120 kB in 21min 44s (1,625 B/s)
Selecting previously unselected package libwxbase2.8-0:amd64.
(Reading database … 253008 files and directories currently installed.)
Preparing to unpack …/libwxbase2.8-0_2.8.12.1+dfsg2-ppa1~ubuntu16.04.1_amd64.deb …
Unpacking libwxbase2.8-0:amd64 (2.8.12.1+dfsg2-ppa1~ubuntu16.04.1) …
Selecting previously unselected package libgstreamer0.10-0:amd64.
Preparing to unpack …/libgstreamer0.10-0_0.10.36-1.5ubuntu1_amd64.deb …
Unpacking libgstreamer0.10-0:amd64 (0.10.36-1.5ubuntu1) …
Selecting previously unselected package libgstreamer-plugins-base0.10-0:amd64.
Preparing to unpack …/libgstreamer-plugins-base0.10-0_0.10.36-2ubuntu0.2_amd64.deb …
Unpacking libgstreamer-plugins-base0.10-0:amd64 (0.10.36-2ubuntu0.2) …
Selecting previously unselected package libwxgtk2.8-0:amd64.
Preparing to unpack …/libwxgtk2.8-0_2.8.12.1+dfsg2-ppa1~ubuntu16.04.1_amd64.deb …
Unpacking libwxgtk2.8-0:amd64 (2.8.12.1+dfsg2-ppa1~ubuntu16.04.1) …
Selecting previously unselected package libwxgtk-media2.8-0:amd64.
Preparing to unpack …/libwxgtk-media2.8-0_2.8.12.1+dfsg2-ppa1~ubuntu16.04.1_amd64.deb …
Unpacking libwxgtk-media2.8-0:amd64 (2.8.12.1+dfsg2-ppa1~ubuntu16.04.1) …
Selecting previously unselected package python-wxgtk2.8.
Preparing to unpack …/python-wxgtk2.8_2.8.12.1+dfsg2-ppa1~ubuntu16.04.1_amd64.deb …
Unpacking python-wxgtk2.8 (2.8.12.1+dfsg2-ppa1~ubuntu16.04.1) …
Processing triggers for libc-bin (2.23-0ubuntu11) …
Setting up libwxbase2.8-0:amd64 (2.8.12.1+dfsg2-ppa1~ubuntu16.04.1) …
Setting up libgstreamer0.10-0:amd64 (0.10.36-1.5ubuntu1) …
Setting up libgstreamer-plugins-base0.10-0:amd64 (0.10.36-2ubuntu0.2) …
Setting up libwxgtk2.8-0:amd64 (2.8.12.1+dfsg2-ppa1~ubuntu16.04.1) …
Setting up libwxgtk-media2.8-0:amd64 (2.8.12.1+dfsg2-ppa1~ubuntu16.04.1) …
Setting up python-wxgtk2.8 (2.8.12.1+dfsg2-ppa1~ubuntu16.04.1) …
Setting up cura (14.01) …
Processing triggers for libc-bin (2.23-0ubuntu11) …
继续安装
$ sudo dpkg -i cura_14.07-debian_amd64.deb
[sudo] password for ubuntu:
(Reading database … 253727 files and directories currently installed.)
Preparing to unpack cura_14.07-debian_amd64.deb …
Unpacking cura (14.01) over (14.01) …
Setting up cura (14.01) …
Processing triggers for bamfdaemon (0.5.3~bzr0+16.04.20180209-0ubuntu1) …
Rebuilding /usr/share/applications/bamf-2.index…
Processing triggers for desktop-file-utils (0.22-1ubuntu5.2) …
Processing triggers for gnome-menus (3.13.3-6ubuntu3.1) …
Processing triggers for mime-support (3.59ubuntu1) …

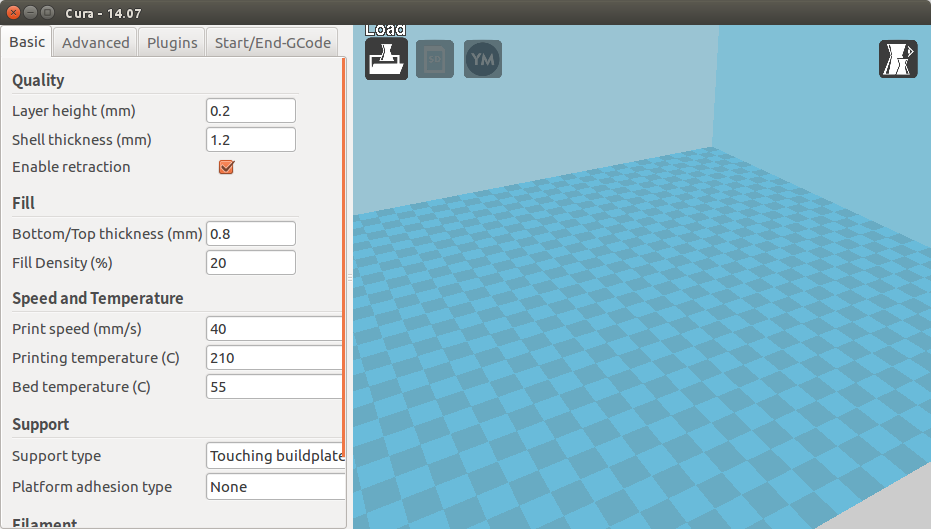

打开cura，设置好打印机类型及尺寸等
$ cura
load preferences from /home/ubuntu/.cura/14.07/preferences.ini
cura已成功安装
